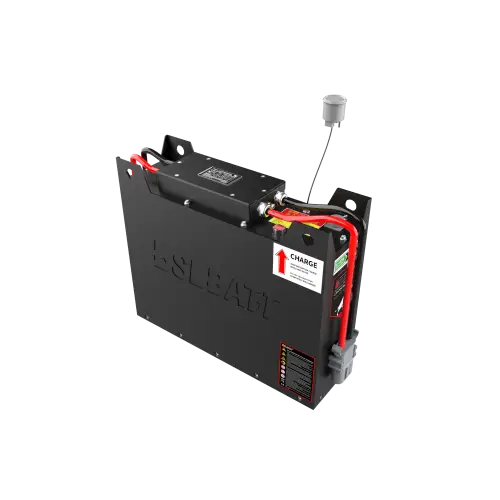

24V 205Ah Lithium Forklift Battery – LFP24-205MH
BSLBATT 24V 205Ah lithium forklift batteries deliver fast-charging, long-life, and maintenance-free performance. Compatible with electric pallet jacks and forklifts, they provide stable, reliable power for UK warehouses. Reduce downtime and lower total cost of ownership with trusted BSLBATT technology.
24V 205Ah Electric Pallet Jack Battery Toyota forklift battery
The B-LFP24-205MH is a high-performance 24V 205Ah lithium battery designed for warehouse and logistics equipment. Using LiFePO4 technology, it delivers extended cycle life, deep-cycle performance, and 2-hour fast charging. With 10× longer life than lead-acid batteries, it offers reliable, cost-effective power for forklifts and electric pallet jacks in material handling operations.
| Parameter | Details |
|---|---|
| Nominal Voltage | 25.6 V |
| Nominal Capacity | 205 Ah |
| Stored Energy | 5.24 kWh |
| Self-discharge | <3% per month |
| Design Life | >10 years |
| Cycle Life | >3500 cycles |
| Group Mode | RP205AH / 1P*8S*1 |
| Dimensions (L×W×H) | Support Customized |
| Standard Case Weight | 79.75 Kg / 175.80 lb |
| Ingress Protection | IP65 |
| Lead Acid Model (BCI Number) | 12-85-5 |
| Parameter | Details |
|---|---|
| Charge Method | CCCV |
| Recommended Chargers | 24V 100A |
| Matching Charger Brands | SPE / FRONIUS / DELTA-Q / ECOTEC |
| Charging Head | REMA160 |
| Discharge Head | ANDERSON175 |
| Display | Magnetic Touch Display |
| Vehicle Communication Mode | CAN |
| Display Communication Method | RS485 |
| Parameter | Details |
|---|---|
| Charging Temperature | 0°C to 50°C / 32°F to 131°F |
| Discharging Temperature | -20°C to 55°C / -4°F to 131°F |
| Storage Temperature | 0°C to 40°C / -4°F to 113°F |
| Certification | CE, UN38.3, UL2580, IEC, CB, ISO9001 |
| Shipping Classification | UN 3480 |
Durable Lithium Battery
Engineered for 3,500+ cycles, providing stable, reliable lithium power for UK forklifts and pallet jacks.
Fast-Charge Technology
Recharges fast with no memory effect, minimising downtime and keeping forklifts running efficiently.
No Upkeep Needed
No watering or inspections required, reducing labour and keeping equipment running at maximum uptime.
Lower Operating Costs
Cut ownership costs by up to 70% over 5 years with efficient energy use and long-lasting lithium performance.
Full Warranty Coverage
Includes an 8-year warranty with full global support for reliable, long-lasting performance.
All-Weather Resistant
Provides reliable performance in extreme heat or cold, perfect for UK warehouses and outdoor environments.
Intelligent Monitoring
Supports smart monitoring with live tracking and remote diagnostics for efficient UK warehouse operations.
Environmentally Friendly
Designed with advanced safety features and eco-friendly construction to minimise carbon footprint.
Upgrade Your Electric Pallet Jack with B-LFP24-205MH
The B-LFP24-205MH is a high-power 24V lithium battery designed for electric pallet jacks. With 3,500+ cycle life, it reduces replacement costs and downtime. Lighter, fast-charging, and more efficient than lead-acid batteries, it features a BMS for safety and is ideal for smooth, continuous indoor logistics operations.
Related Products
B-LFP24-230MH
25.6V 230Ah
12-857
B-LFP24-135MH
25.6V 135Ah
12-85-3
B-LFP24-150MH
25.6V 150Ah
12-85-3
B-LFP24-280MH
25.6V 280Ah
12-85-9
Discover the Full Range of BSLBATT 24V Lithium Batteries
| Model | Nominal Voltage | Nominal Capacity | Stored Energy | Dimensions(mm) | Number of Module Methods | Case Weight Standard | Casing Material | IP Rating |
|---|---|---|---|---|---|---|---|---|
| B-LFP24-100MH | 25.6V | 100Ah | 2.56kWh | Support Customized | 1P*8S*1 | 42kg( 88.18lbs. ) | Steel | IP65 |
| B-LFP24-135MH | 135Ah | 3.46kWh | 1P*8S*1 | 62kg( 136.69lbs. ) | ||||
| B-LFP24-173MH | 173Ah | 4.43kWh | 1P*8S*1 | 62kg( 136.69lbs. ) | ||||
| B-LFP24-205MH | 205Ah | 5.25kWh | 1P*4S*2 | 80kg( 176.37lbs. ) | ||||
| B-LFP24-230MH | 230Ah | 5.89kWh | 1P*8S*1 | 85kg( 187.39lbs. ) | ||||
| B-LFP24-280MH | 280Ah | 7.17kWh | 1P*8S*1 | 97kg( 213.85lbs. ) | ||||
| B-LFP24-304MH | 304Ah | 7.78kWh | 1P*8S*1 | 102kg( 224.87lbs. ) | ||||
| B-LFP24-346MH | 346Ah | 8.86kWh | 2P*4S*2 | 119kg( 262.35lbs. ) | ||||
| B-LFP24-410MH | 410Ah | 10.50kWh | 2P*4S*2 | 142kg( 313.06lbs. ) | ||||
| B-LFP24-460MH | 460Ah | 11.78kWh | 2P*4S*2 | 156kg( 343.92lbs. ) | ||||
| B-LFP24-519MH | 519Ah | 13.29kWh | 3P*4S*2 | 171kg( 376.99lbs. ) | ||||
| B-LFP24-560MH | 560Ah | 14.34kWh | 2P*4S*2 | 181kg( 399.04lbs. ) | ||||
| B-LFP24-608MH | 608Ah | 15.56kWh | 2P*4S*2 | 190kg( 418.88lbs. ) | ||||
| B-LFP24-615MH | 615Ah | 15.74kWh | 3P*4S*2 | 191kg( 421.08lbs. ) | ||||
| B-LFP24-690MH | 690Ah | 17.66kWh | 3P*4S*2 | 210kg( 462.97lbs. ) | ||||
| B-LFP24-840MH | 840Ah | 20.99kWh | 3P*2S*4 | 244kg( 537.93lbs. ) | ||||
| B-LFP24-920MH | 920Ah | 23.55kWh | 4P*2S*4 | 270kg( 595.25lbs. ) | ||||
| B-LFP24-1120MH | 1120Ah | 28.67kWh | 4P*2S*4 | 317kg( 698.87lbs. ) | ||||
| Enviroment Temp. Range | Charge：-20℃~55℃（-4℉~131℉） | Discharge：-20℃~55℃（-4℉~131℉） | Storge：-20℃~55℃（-4℉~131℉） | |||||
