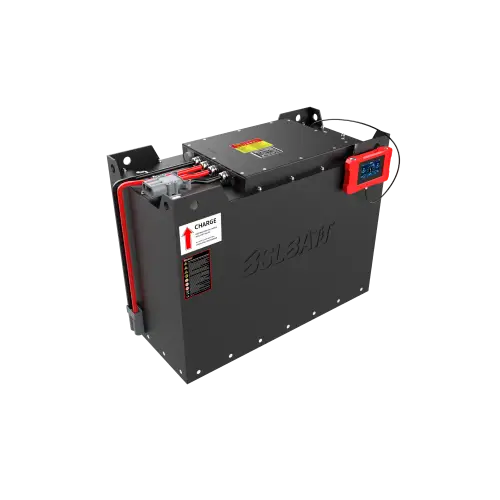

36V 690Ah LiFePO4 Forklift Battery – B-LFP36-690MH
The BSLBATT B-LFP36-690MH is a 36V LiFePO4 deep-cycle forklift battery for electric stackers. Maintenance-free, fast-charging, and long-lasting, it delivers reliable power, improves efficiency, and outperforms traditional lead-acid batteries in UK warehouse operations.
36V 690Ah LiFePO4 Forklift Battery Deep Cycle Lithium Battery for Electric Stacker Forklift
| Parameter | Details |
|---|---|
| Nominal Voltage | 38.4 V |
| Nominal Capacity | 690 Ah |
| Stored Energy | 26.5 kWh |
| Self-discharge | <3% per month |
| Design Life | >10 years |
| Cycle Life | >3500 cycles |
| Group Mode | YW230AH / 3P*4S*3 |
| Dimensions (L×W×H) | Support Customized |
| Standard Case Weight | 300.72 Kg / 662.87 lb |
| Ingress Protection | IP65 |
| Lead Acid Model (BCI Number) | 18-125-23 |
| Parameter | Details |
|---|---|
| Charge Method | CCCV |
| Recommended Chargers | 48V 300A |
| Matching Charger Brands | SPE / FRONIUS / DELTA-Q / ECOTEC |
| Charging Head | REMA320 |
| Discharge Head | ANDERSON350 |
| Display | Magnetic Touch Display |
| Vehicle Communication Mode | CAN |
| Display Communication Method | RS485 |
| Parameter | Details |
|---|---|
| Charging Temperature | 0°C to 50°C / 32°F to 131°F |
| Discharging Temperature | -20°C to 55°C / -4°F to 131°F |
| Storage Temperature | 0°C to 40°C / 32°F to 113°F |
| Certification | CE, UN38.3, UL2580, IEC, CB, ISO9001 |
| Shipping Classification | UN 3480 |
High-Durability Lithium Battery
3,500+ Cycle LiFePO4 Battery – High-Performance, Maintenance-Free Power for UK Forklifts & Pallet Trucks
Rapid-Charge Lithium Battery
Fast-Recharging LiFePO4 Battery – Maintenance-Free, Reliable Power for UK Forklifts & Industrial Equipment
Maintenance-Free
Maintenance-Free Battery – No Watering or Inspections, Boosting UK Forklift Efficiency & Reducing Downtime
Lower Running Costs
Cut Ownership Costs up to 70% – Long-Life, Efficient LiFePO4 Battery for UK Forklifts & Industrial Equipment
Extended Warranty
8-Year Warranty & Global Support – Reliable Long-Term LiFePO4 Battery for UK Forklifts & Industrial Equipment
High-Temperature Lithium Battery
Reliable Performance in Hot & Cold Conditions – LiFePO4 Battery for UK Warehouses, Outdoor Forklifts & Industrial Equipment
Advanced Battery Protection
Smart Monitoring with Live Tracking & Remote Diagnostics – Enhancing Efficiency for UK Forklifts & Industrial Equipment
Eco-Friendly Lithium Battery
Advanced Safety & Eco-Friendly Lithium Battery – Reducing Carbon Footprint for UK Forklifts & Industrial Equipment
Elevate Forklift Efficiency with Long-Lasting Power
Tailored for electric stackers, the B-LFP36-690MH is a high-capacity 36V lithium forklift battery, replacing outdated lead-acid units. With 690Ah and 3,500+ charge cycles, it delivers consistent power for multi-shift operations while reducing lifecycle costs. Maintenance-free and fast-charging, it streamlines battery management and boosts UK warehouse efficiency.
Related Products
B-LFP24-608MH
25.6V 608Ah
12-125-21
B-LFP36-608MH
38.4V 608Ah
18-125-21
B-LFP36-820MH
38.4V 820Ah
18-125-27
B-LFP24-150MH
25.6V 150Ah
12-85-3
Discover More BSLBATT 36V Lithium Battery Solutions
| Model | Nominal Voltage | Nominal Capacity | Stored Energy | Dimensions(mm) | Number of Module Methods | Case Weight Standard | Casing Material | IP Rating |
|---|---|---|---|---|---|---|---|---|
| B-LFP36-173MH | 38.4V | 173Ah | 6.64kWh | Support Customized | 1P*12S*1 | 108kg(238.82 lbs. ) | Steel | IP65 |
| B-LFP36-205MH | 38.4V | 205Ah | 7.87kWh | 1P*12S*1 | 122kg( 268.16 lbs. ) | |||
| B-LFP36-230MH | 38.4V | 230Ah | 8.83kWh | 1P*12S*1 | 129kg( 284.20 lbs. ) | |||
| B-LFP36-280MH | 38.4V | 280Ah | 10.75kWh | 1P*6S*2 | 148kg( 327.29lbs. ) | |||
| B-LFP36-304MH | 38.4V | 304Ah | 11.67kWh | 1P*6S*2 | 155kg( 342.68lbs. ) | |||
| B-LFP36-346MH | 38.4V | 346Ah | 13.29kWh | 2P*4S*2 | 171kg( 376.23lbs. ) | |||
| B-LFP36-410MH | 38.4V | 410Ah | 15.74kWh | 2P*4S*3 | 204kg( 450.34lbs. ) | |||
| B-LFP36-460MH | 38.4V | 460Ah | 17.66kWh | 2P*4S*3 | 219kg( 482.41lbs. ) | |||
| B-LFP36-519MH | 38.4V | 519Ah | 19.93kWh | 3P*4S*3 | 249kg( 548.91lbs. ) | |||
| B-LFP36-560MH | 38.4V | 560Ah | 21.50kWh | 2P*4S*3 | 261kg( 575.21lbs. ) | |||
| B-LFP36-608MH | 38.4V | 608Ah | 23.35kWh | 3P*4S*3 | 281kg( 619.30lbs. ) | |||
| B-LFP36-690MH | 38.4 | 690Ah | 26.50kWh | 3P*4S*3 | 301kg( 662.99lbs. ) | |||
| B-LFP36-820MH | 38.4V | 820Ah | 31.49kWh | 2P*4S*6 | 344kg( 757.39lbs. ) | |||
| B-LFP36-920MH | 38.4V | 920Ah | 35.33kWh | 4P*2S*6 | 403kg(887.66lbs. ) | |||
| B-LFP36-1120MH | 38.4V | 1120Ah | 43.01kWh | 4P*2S*6 | 481kg( 1060.02lbs. ) |
