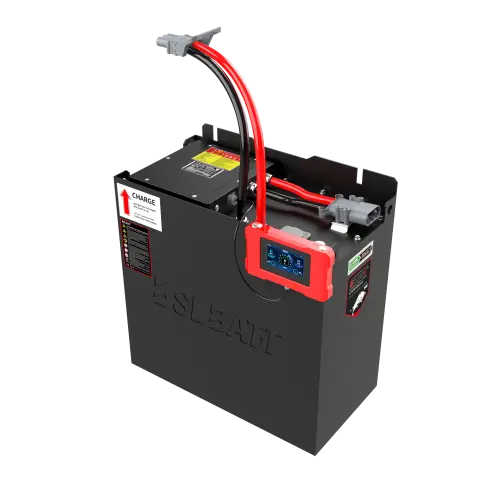

48V 410Ah LiFePO4 Battery – Big Joe Pallet Jack
The B-LFP-48-410MH is a 48V (51.2V) lithium-ion battery for Big Joe pallet jacks and electric pallet trucks. Lightweight, fast-charging, and long-lasting, it boosts efficiency and reduces costs in UK warehouses and material handling operations.
48V 410Ah Lithium Battery for Big Joe Pallet Jack Electric Pallet Truck Battery
| Parameter | Details |
|---|---|
| Nominal Voltage | 51.2 V |
| Nominal Capacity | 410 Ah |
| Stored Energy | 21 kWh |
| Self-discharge | <3% per month |
| Design Life | >10 years |
| Cycle Life | >3500 cycles |
| Group Mode | RP205AH / 2P*4S*4 |
| Dimensions (L×W×H) | 815*540*400 MM / 32.09*21.26*15.75 in |
| Standard Case Weight | 242.03 Kg / 533.55 lb |
| Ingress Protection | IP65 |
| Lead Acid Model (BCI Number) | 24-85-13 |
| Parameter | Details |
|---|---|
| Charge Method | CCCV |
| Recommended Chargers | 48V 200A |
| Matching Charger Brands | SPE / FRONIUS / DELTA-Q / ECOTEC |
| Charging Head | REMA320 |
| Discharge Head | ANDERSON350 |
| Display | Magnetic Touch Display |
| Vehicle Communication Mode | CAN |
| Display Communication Method | RS485 |
| Parameter | Details |
|---|---|
| Charging Temperature | 0°C to 50°C / 32°F to 131°F |
| Discharging Temperature | -20°C to 55°C / -4°F to 131°F |
| Storage Temperature | 0°C to 40°C / -4°F to 113°F |
| Certification | CE, UN38.3, UL2580, IEC, CB, ISO9001 |
| Shipping Classification | UN 3480 |
Robust Lithium Battery
3,500+ Cycle LiFePO4 Battery – Long-Lasting, Maintenance-Free Power for UK Forklifts & Pallet Trucks
Quick-Charge Lithium Battery
Rapid-Recharge LiFePO4 Battery – Long-Lasting, Maintenance-Free Power for UK Forklifts & Industrial Equipment
Trouble-Free
Maintenance-Free Battery – No Watering, No Inspections, Reliable Power for UK Forklifts
Lower Running Costs
Cut Ownership Costs up to 70% – Long-Life, Efficient LiFePO4 Battery for UK Forklifts & Industrial Equipment
Extended Coverage
8-Year Warranty & Global Support – Robust, Long-Life LiFePO4 Battery for UK Forklifts & Industrial Equipment
High-Temperature Lithium Battery
Reliable Performance in Extreme Heat & Cold – LiFePO4 Battery for UK Warehouses, Outdoor Forklifts & Industrial Equipment
Premium Battery Safeguard
Smart Monitoring with Live Tracking & Remote Diagnostics – Enhancing Efficiency for UK Forklifts & Industrial Equipment
Eco-Friendly Lithium Battery
Advanced Safety & Eco-Friendly Lithium Battery – Low Carbon Footprint for UK Forklifts & Industrial Equipment
Boost Pallet Jack Productivity with 48V Power
The B-LFP-48-410MH is a compact 48V LiFePO4 battery designed for Big Joe pallet jacks and other electric pallet trucks. With 410Ah capacity and lightweight construction, it’s easy to install and reduces vehicle strain. Offering faster charging and up to 5X longer cycle life than lead-acid batteries, it delivers consistent, maintenance-free power for UK warehouses and high-throughput material handling.
Related Products
B-LFP24-608MH
25.6V 608Ah
12-125-21
B-LFP36-608MH
38.4V 608Ah
18-125-21
B-LFP36-690MH
38.4V 690Ah
18-125-23
B-LFP36-820MH
38.4V 820Ah
18-125-27
Discover More BSLBATT 48V Lithium Battery Solutions
| Model | Nominal Voltage | Nominal Capacity | Stored Energy | Dimensions(mm) | Number of Module Methods | Case Weight Standard | Casing Material | IP Rating |
|---|---|---|---|---|---|---|---|---|
| B-LFP48-205MH | 51.2V | 205Ah | 10.50kWh | Support Customized | 1P*8S*2 | 145kg(318.60 lbs. ) | Steel | IP65 |
| B-LFP48-230MH | 51.2V | 230Ah | 11.78kWh | 1P*8S*2 | 154kg( 339.98 lbs. ) | |||
| B-LFP48-280MH | 51.2V | 280Ah | 14.34kWh | 1P*8S*2 | 179kg( 393.76 lbs. ) | |||
| B-LFP48-304MH | 51.2V | 304Ah | 15.56kWh | 2P*4S*4 | 189kg( 416.67 lbs. ) | |||
| B-LFP48-346MH | 51.2V | 346Ah | 17.72kWh | 2P*4S*4 | 209kg( 461.34 lbs. ) | |||
| B-LFP48-410MH | 51.2V | 410Ah | 20.99kWh | 2P*4S*4 | 242kg( 533.59 lbs. ) | |||
| B-LFP48-460MH | 51.2V | 460Ah | 23.55kWh | 2P*4S*4 | 266kg( 587.36 lbs. ) | |||
| B-LFP48-519MH | 51.2V | 519Ah | 26.57kWh | 3P*4S*4 | 306kg( 675.30 lbs. ) | |||
| B-LFP48-560MH | 51.2V | 560Ah | 28.67kWh | 2P*4S*4 | 332kg( 732.40 lbs. ) | |||
| B-LFP48-608MH | 51.2V | 680Ah | 31.13kWh | 1P*8S*2 | 349kg( 769.41 lbs. ) | |||
| B-LFP48-615MH | 51.2V | 615Ah | 31.49kWh | 3P*4S*4 | 359kg( 790.46 lbs. ) | |||
| B-LFP48-690MH | 51.2V | 690Ah | 35.33kWh | 3P*4S*4 | 400kg( 881.05 lbs. ) | |||
| B-LFP48-820MH | 51.2V | 820Ah | 41.98kWh | 4P*4S*4 | 468kg( 1031.90 lbs. ) | |||
| B-LFP48-920MH | 51.2 | 920Ah | 47.10kWh | 4P*2S*8 | 527kg(1161.50 lbs. ) | |||
| B-LFP48-1120MH | 51.2V | 1120Ah | 57.34kWh | 4P*2S*8 | 629kg( 1387.64 lbs. ) |
