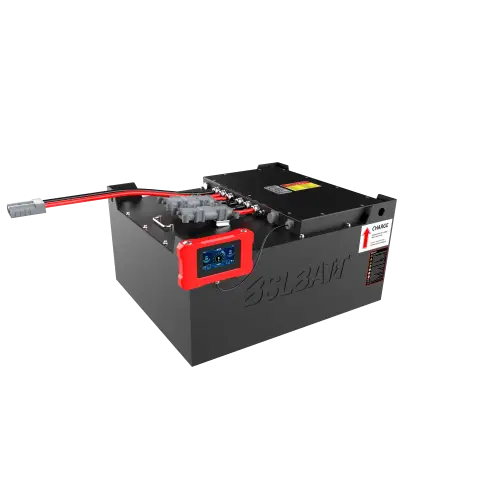

48V 560Ah LiFePO4 Battery – Hyster Narrow Aisle Forklift
B-LFP-48-560MH is a 48V 560Ah LiFePO4 battery with 5X longer life, fast charging, and maintenance-free power. Ideal for Hyster narrow aisle forklifts and walkie stackers, it boosts efficiency and delivers reliable, cost-effective performance for UK warehouses.
48V 560Ah Lithium Battery Forklifts For Narrow Aisles Hyster Forklift Battery
| Parameter | Details |
|---|---|
| Nominal Voltage | 51.2 V |
| Nominal Capacity | 560 Ah |
| Stored Energy | 28.67 kWh |
| Self-discharge | <3% per month |
| Design Life | >10 years |
| Cycle Life | >3500 cycles |
| Group Mode | RP280AH / 2P*4S*4 |
| Dimensions (L×W×H) | 815 × 668 × 400 mm / 32.09 × 26.30 × 15.75 in |
| Standard Case Weight | 332.21 kg / 732.42 lb |
| Ingress Protection | IP65 |
| Lead Acid Model (BCI Number) | 24-125-19 |
| Parameter | Details |
|---|---|
| Charge Method | CCCV |
| Recommended Chargers | 48V 200A |
| Matching Charger Brands | SPE / FRONIUS / DELTA-Q / ECOTEC |
| Charging Head | REMA320 |
| Discharge Head | ANDERSON350 |
| Display | Magnetic Touch Display |
| Vehicle Communication Mode | CAN |
| Display Communication Method | RS485 |
| Parameter | Details |
|---|---|
| Charging Temperature | 0°C to 50°C / 32°F to 131°F |
| Discharging Temperature | -20°C to 55°C / -4°F to 131°F |
| Storage Temperature | 0°C to 40°C / -4°F to 113°F |
| Certification | CE, UN38.3, UL2580, IEC, CB, ISO9001 |
| Shipping Classification | UN 3480 |
Robust Lithium Battery
3,500+ Cycle LiFePO4 Battery – Long-Life, No-Maintenance Power for UK Forklifts & Pallet Trucks
High-Speed Charging Battery
Fast-Charging LiFePO4 Battery – Durable, Maintenance-Free Power for UK Forklifts & Industrial Equipment
Maintenance-Free
Maintenance-Free Battery – No Watering, No Inspections, Reliable UK Forklift Power
Lower Running Costs
Reduce Ownership Costs up to 70% – Long-Life, Efficient LiFePO4 Battery for UK Forklifts & Industrial Equipment
Prolonged Coverage
8-Year Coverage & Worldwide Support – Durable, Long-Life LiFePO4 Battery for UK Forklifts & Industrial Equipment
Heat-Resistant Battery
Consistent Performance in Extreme Temperatures – LiFePO4 Battery for UK Warehouses & Forklifts
Premium Battery Safeguard
Intelligent Monitoring with Real-Time Tracking & Remote Diagnostics – Boosting UK Forklift Efficiency
Eco-Conscious
Advanced Safety & Green Lithium Battery – Sustainable Power for UK Forklifts & Industrial Equipment
Deliver More Uptime in Multi-Shift Warehouses
The B-LFP-48-560MH is a 48V 560Ah LiFePO4 forklift battery designed for Hyster forklifts in demanding UK warehouses. Fast-charging and maintenance-free, it delivers stable power for long operational cycles, boosts performance under heavy loads, and reduces energy costs and total ownership by up to 40% compared to lead-acid batteries.
Related Products
B-LFP48-460MH
51.2V 460Ah
24-85-15
B-LFP48-615MH
51.2V 615Ah
24-125-21
B-LFP48-820MH
51.2V 820Ah
24-125-27
B-LFP80-460MH
80V 460Ah
40-85-15
Discover More BSLBATT 48V Lithium Battery Solutions
| Model | Nominal Voltage | Nominal Capacity | Stored Energy | Dimensions(mm) | Number of Module Methods | Case Weight Standard | Casing Material | IP Rating |
|---|---|---|---|---|---|---|---|---|
| B-LFP48-205MH | 51.2V | 205Ah | 10.50kWh | Support Customized | 1P*8S*2 | 145kg(318.60 lbs. ) | Steel | IP65 |
| B-LFP48-230MH | 51.2V | 230Ah | 11.78kWh | 1P*8S*2 | 154kg( 339.98 lbs. ) | |||
| B-LFP48-280MH | 51.2V | 280Ah | 14.34kWh | 1P*8S*2 | 179kg( 393.76 lbs. ) | |||
| B-LFP48-304MH | 51.2V | 304Ah | 15.56kWh | 2P*4S*4 | 189kg( 416.67 lbs. ) | |||
| B-LFP48-346MH | 51.2V | 346Ah | 17.72kWh | 2P*4S*4 | 209kg( 461.34 lbs. ) | |||
| B-LFP48-410MH | 51.2V | 410Ah | 20.99kWh | 2P*4S*4 | 242kg( 533.59 lbs. ) | |||
| B-LFP48-460MH | 51.2V | 460Ah | 23.55kWh | 2P*4S*4 | 266kg( 587.36 lbs. ) | |||
| B-LFP48-519MH | 51.2V | 519Ah | 26.57kWh | 3P*4S*4 | 306kg( 675.30 lbs. ) | |||
| B-LFP48-560MH | 51.2V | 560Ah | 28.67kWh | 2P*4S*4 | 332kg( 732.40 lbs. ) | |||
| B-LFP48-608MH | 51.2V | 680Ah | 31.13kWh | 1P*8S*2 | 349kg( 769.41 lbs. ) | |||
| B-LFP48-615MH | 51.2V | 615Ah | 31.49kWh | 3P*4S*4 | 359kg( 790.46 lbs. ) | |||
| B-LFP48-690MH | 51.2V | 690Ah | 35.33kWh | 3P*4S*4 | 400kg( 881.05 lbs. ) | |||
| B-LFP48-820MH | 51.2V | 820Ah | 41.98kWh | 4P*4S*4 | 468kg( 1031.90 lbs. ) | |||
| B-LFP48-920MH | 51.2 | 920Ah | 47.10kWh | 4P*2S*8 | 527kg(1161.50 lbs. ) | |||
| B-LFP48-1120MH | 51.2V | 1120Ah | 57.34kWh | 4P*2S*8 | 629kg( 1387.64 lbs. ) |
Have questions or need a custom forklift battery solution? The BSLBATT UK team will respond within 24 hours.
