ESS-GRID DYNIO Series – 410V–766V, 62–93 kWh

Smart, all-in-one energy storage system for businesses and solar installations. The DYNIO Series by BSLBATT is reliable, efficient, and user-friendly, providing stable energy management, seamless power backup, and optimized performance for commercial and renewable energy setups.

Sustainable Living, Powered by BSLBATT

Efficient Energy Management with ESS-GRID DyniO Series

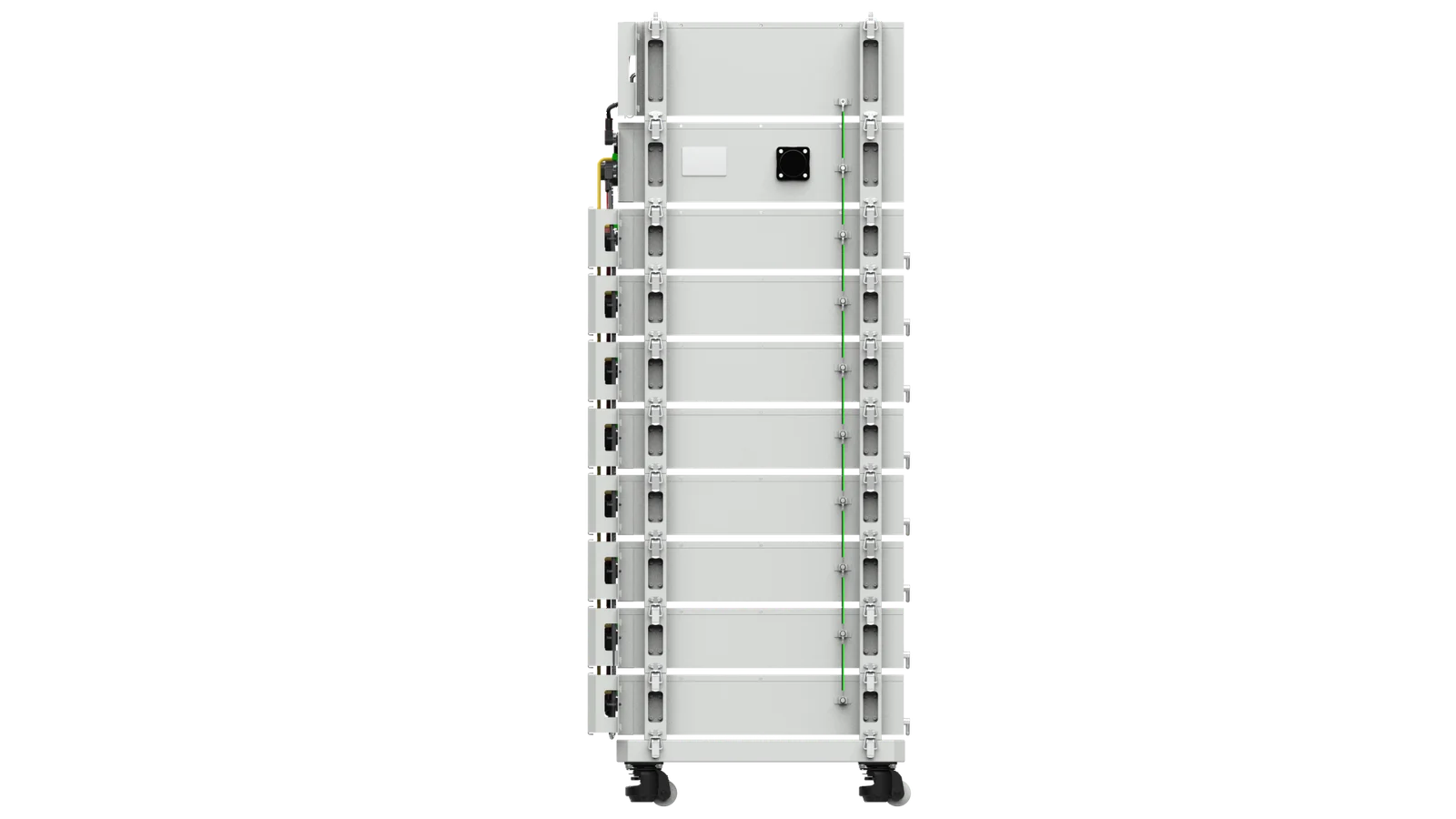

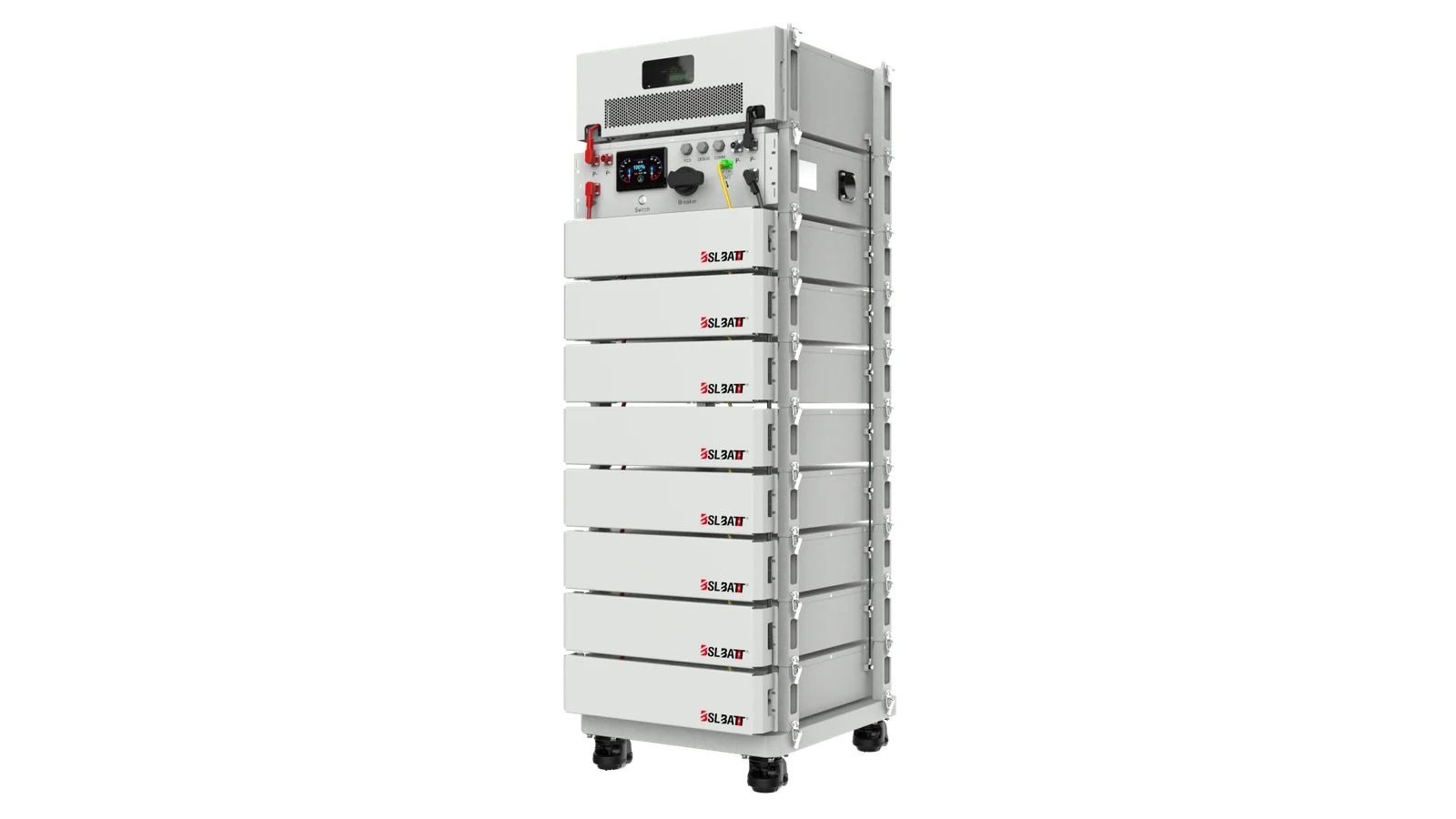

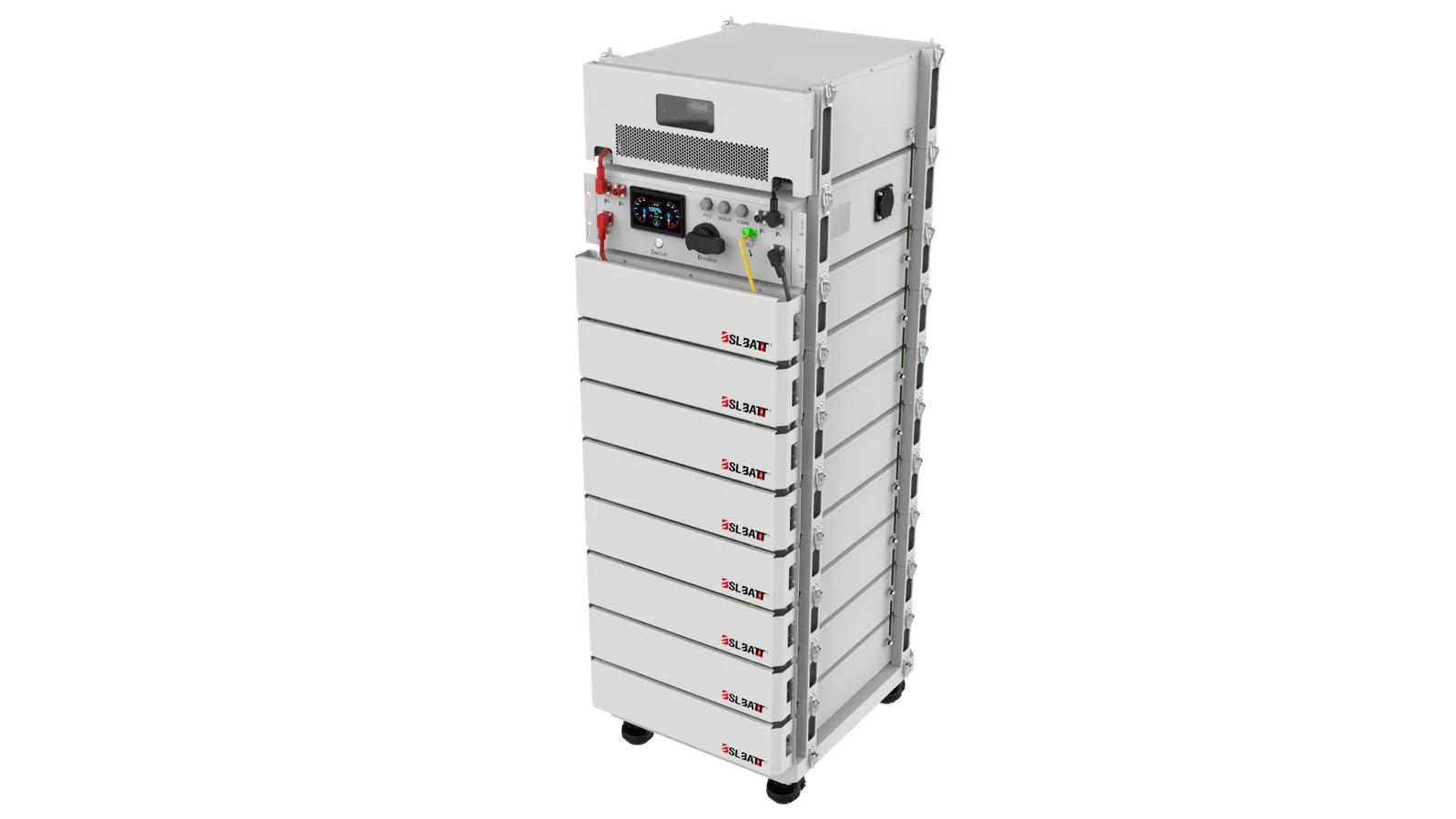

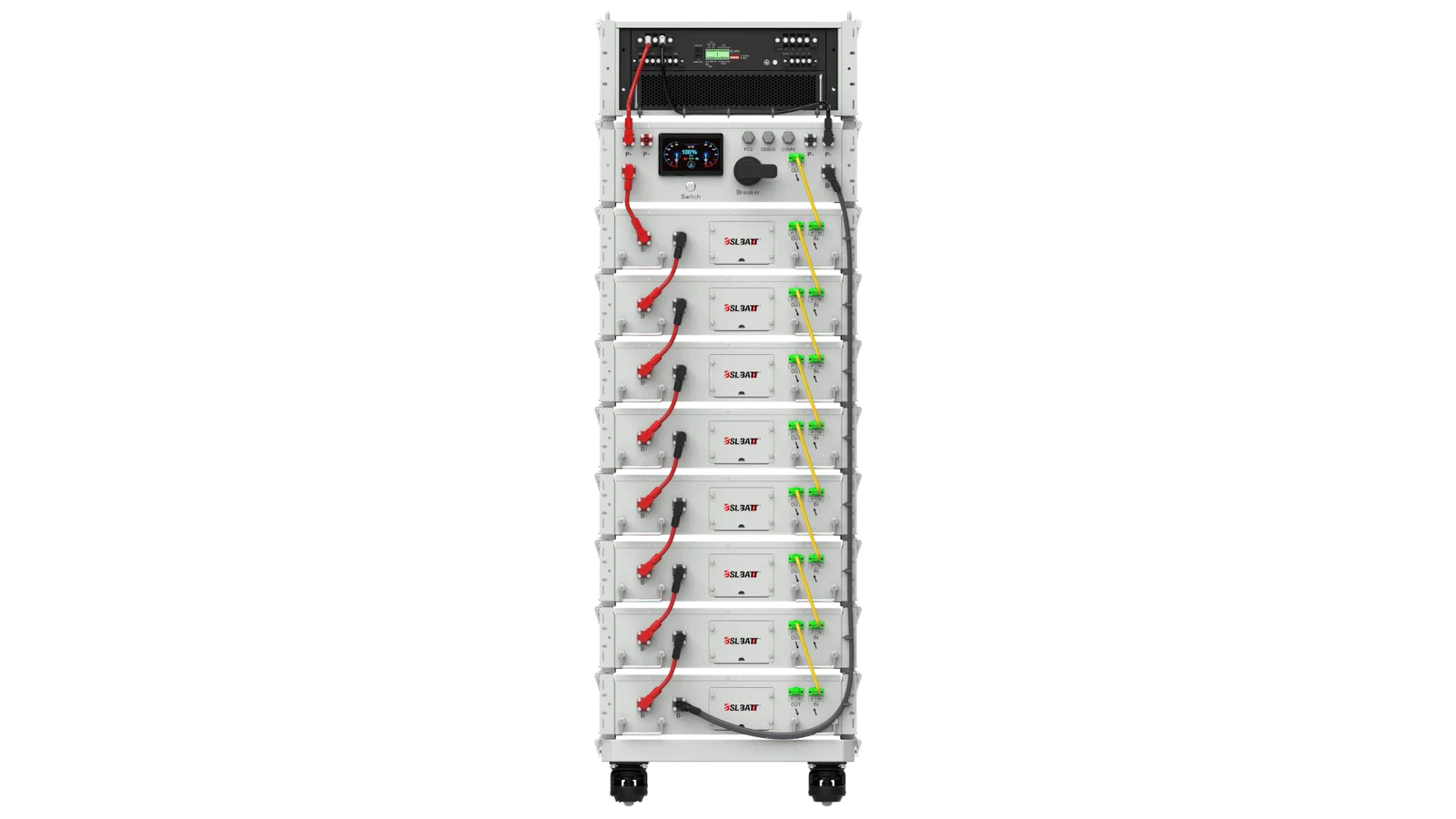

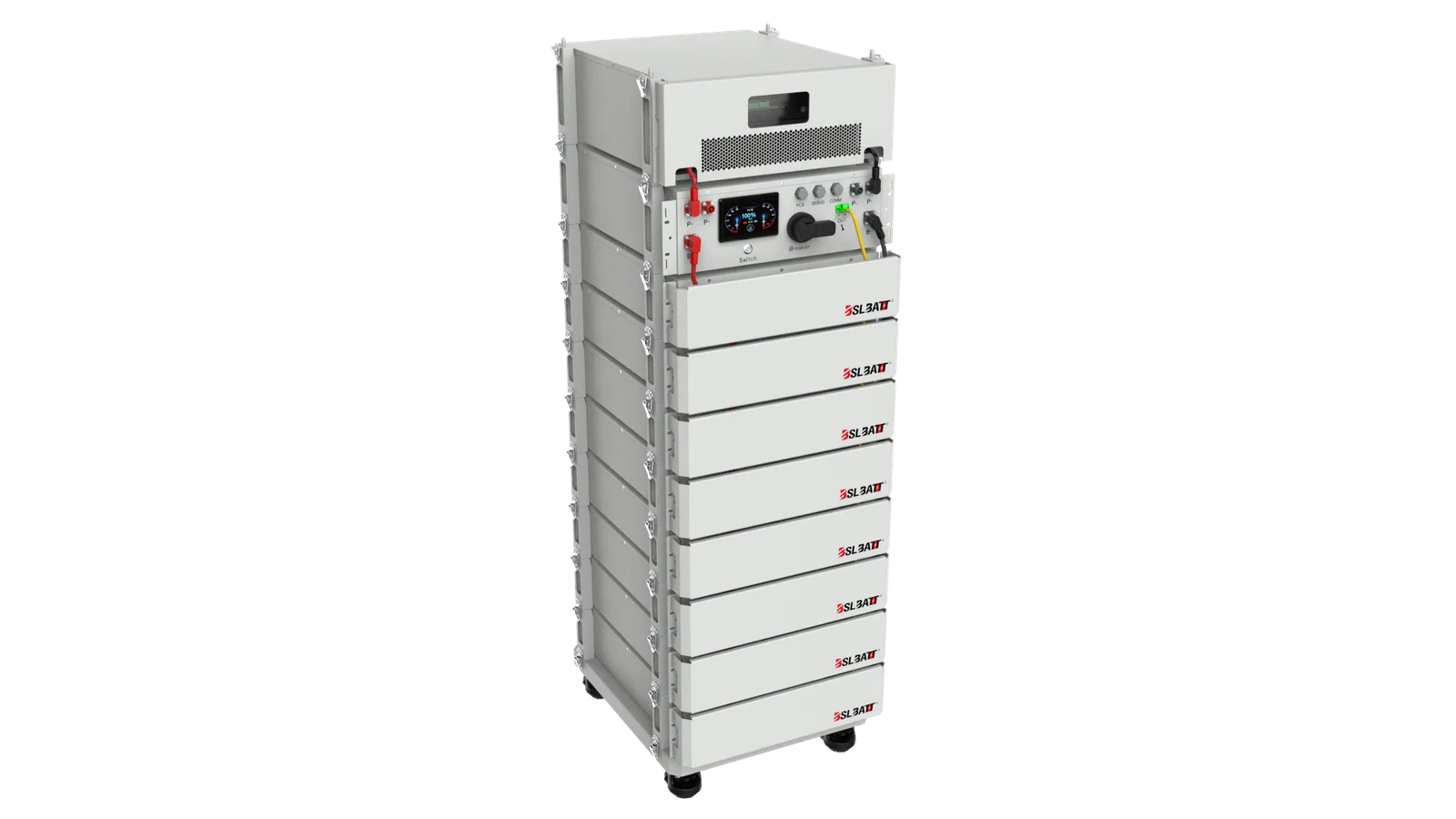

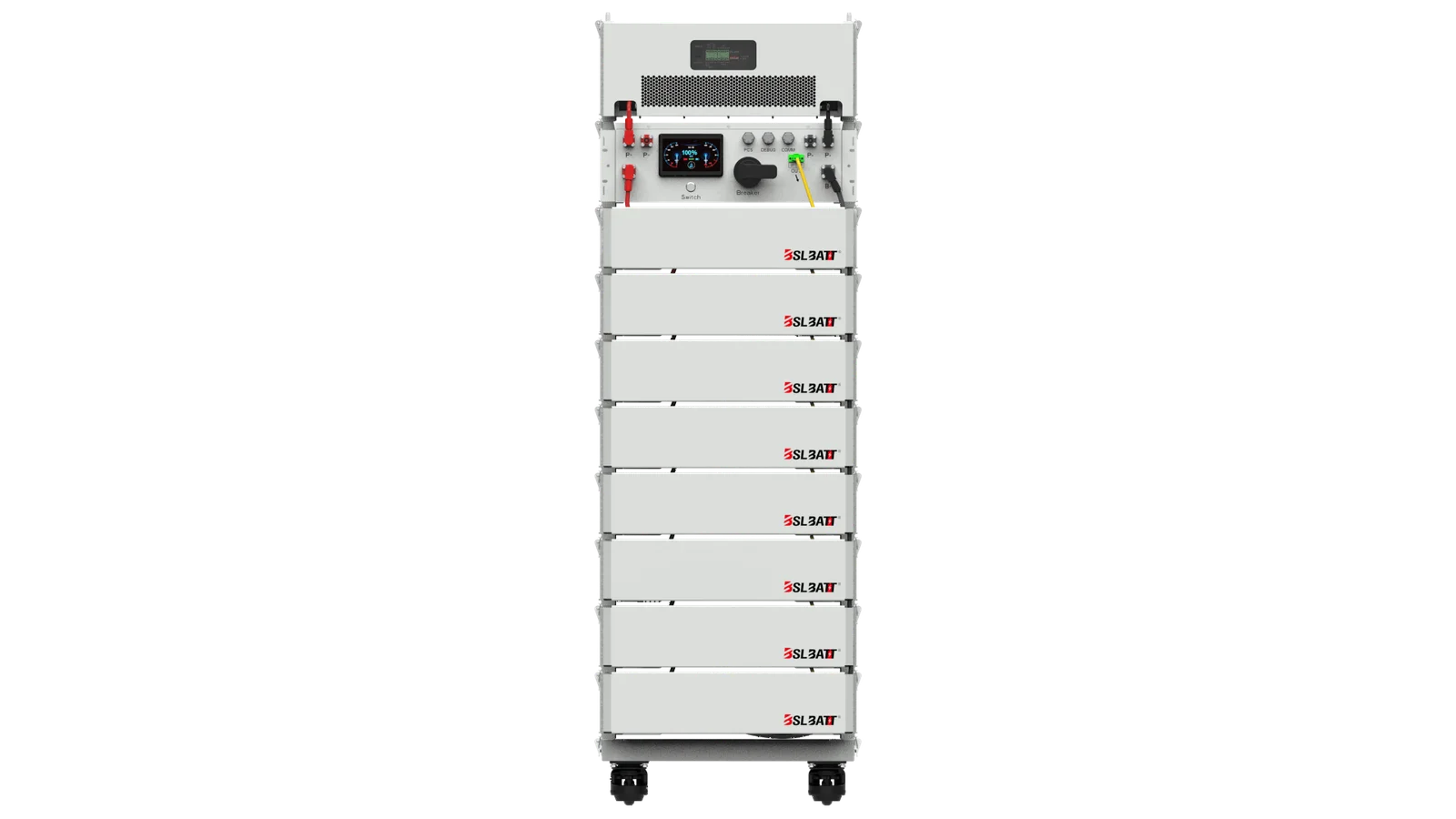

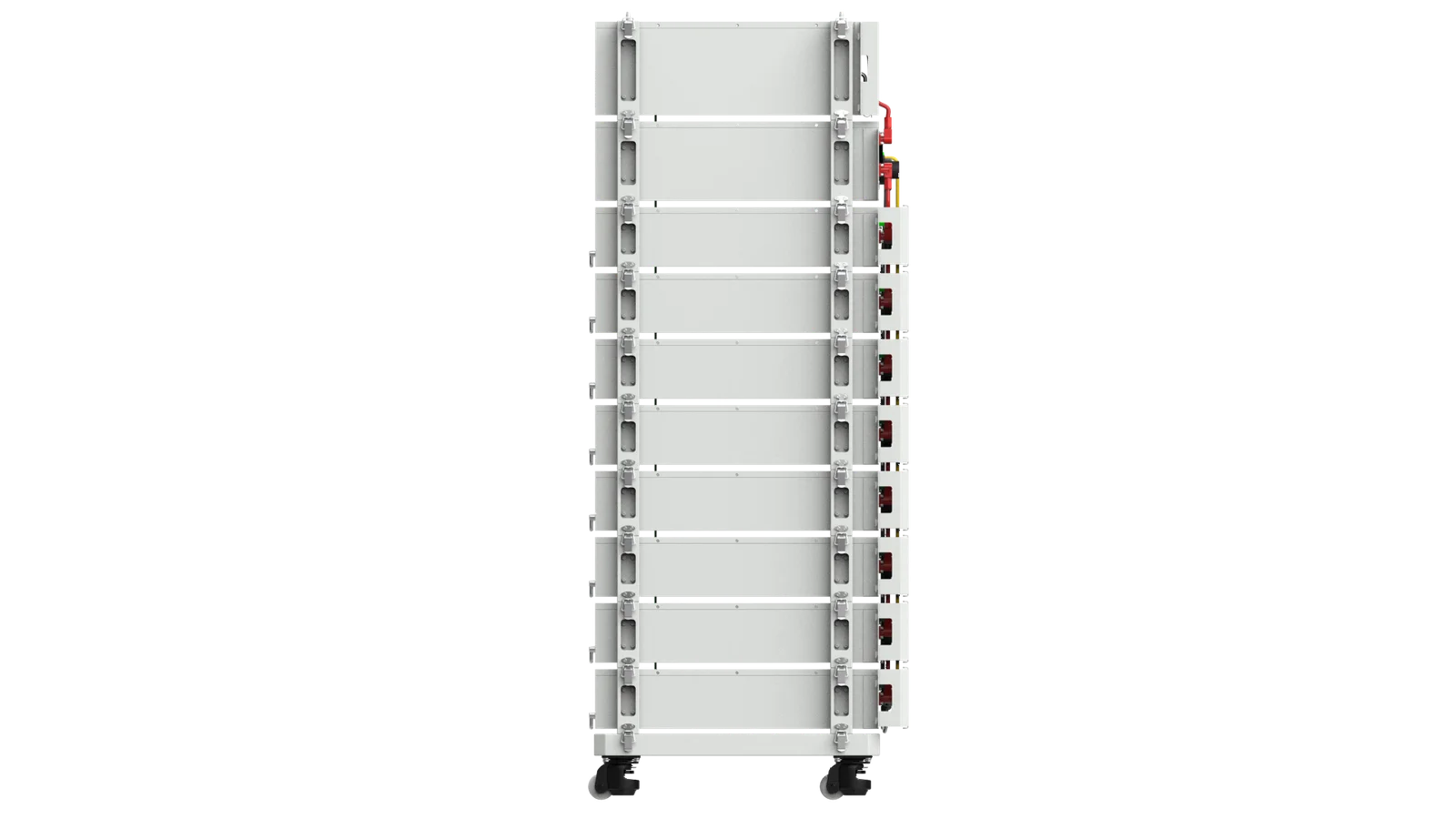

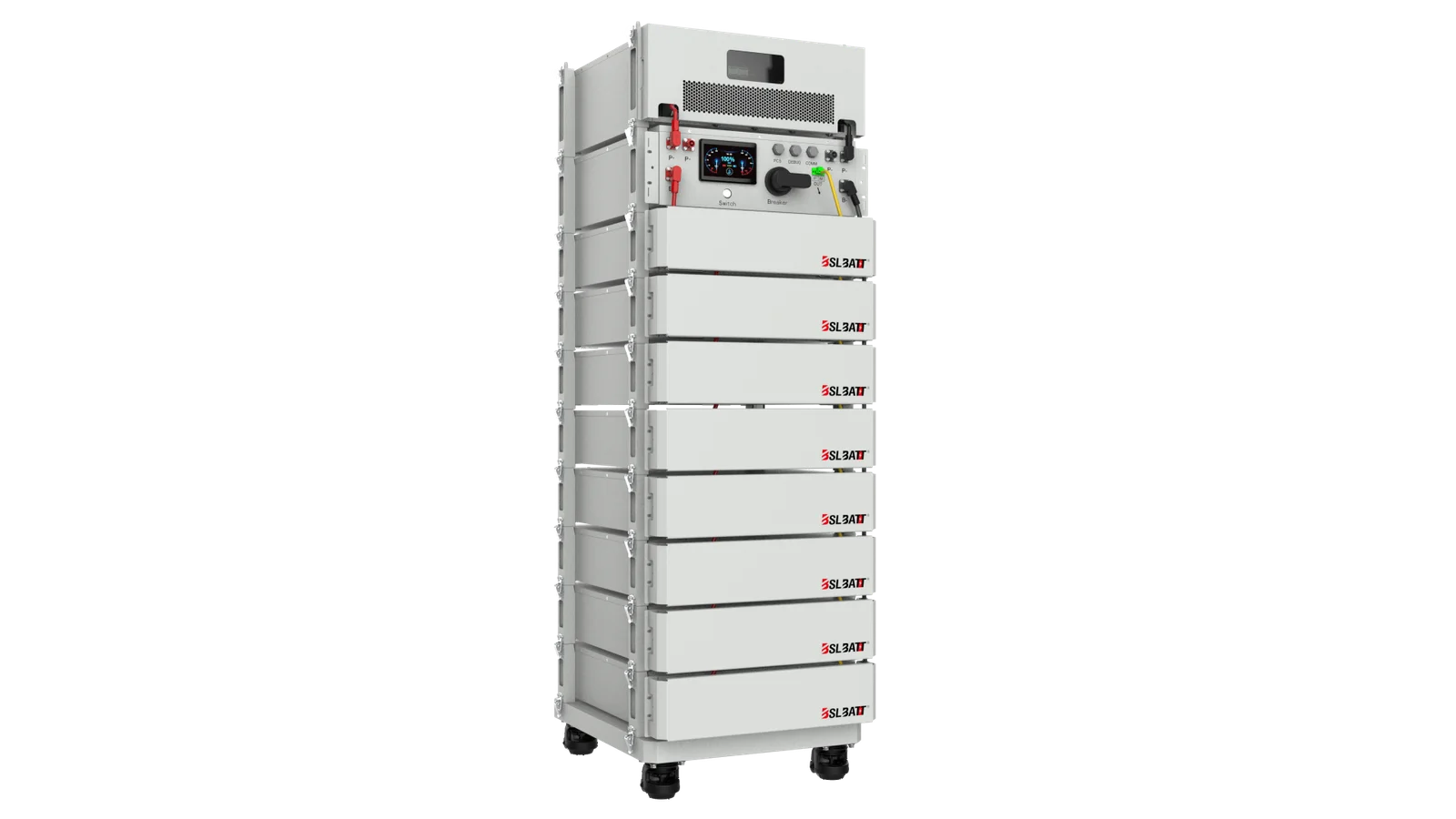

The ESS-GRID DYNIO integrates a 30 kW inverter with 62 kWh to 93 kWh of LiFePO4 battery storage, offering a smart, all-in-one energy storage solution. Featuring intelligent system control, long cycle life, and built-in safety protections, it delivers efficient charge and discharge while maintaining stable, reliable operation.Designed by BSLBATT for commercial, industrial, and solar-connected applications, the DYNIO Series provides scalable, dependable energy storage for businesses and renewable energy setups.

Scalable Modular Architecture

Modular design allows flexible capacity expansion by connecting up to three units in parallel, enabling easy scaling to meet increasing energy demands and diverse commercial or solar applications.

High Conversion Efficiency

With a conversion efficiency of up to 97.8%, the ESS-GRID DYNIO maximizes usable energy, minimizes operational losses, and delivers long-term cost savings for commercial and solar applications.

Long Cycle Life

The ESS-GRID DYNIO’s LiFePO4 battery cells deliver up to 6,000 cycles at 90% depth of discharge, ensuring long-lasting reliability and high durability even under intensive use.

Intelligent Thermal Control

The ESS-GRID DYNIO features an advanced forced-air cooling system that ensures stable operation from -30°C to 60°C, protecting internal components and delivering consistent performance in any climate.

Flexible System Integration

The ESS-GRID DYNIO supports multi-protocol communication interfaces, including RS485 and CAN, enabling seamless integration with a wide range of energy management systems and inverters.

Certified Safety and Reliability

The ESS-GRID DYNIO complies with IEC62619, CE, and UN38.3 standards, guaranteeing top-tier safety, reliability, and quality assurance throughout every stage of deployment.

Specifications

Discover ESS-GRID DYNIO SERIES Performance

The ESS-GRID DYNIO Series delivers modular high-voltage LiFePO₄ energy storage for commercial, industrial, and solar-connected applications, with scalable capacities from 62 kWh to 93 kWh and system voltages from 410 V to 819 V. Designed for long cycle life, high efficiency, and reliable operation, it supports grid integration, peak shaving, backup power, and renewable energy management, providing stable, uninterrupted energy while optimizing operational costs.

Parameter	Details
Number of Battery Packs	8
Rated Voltage	460.8 V
Voltage Range	410.4 – 511.2 V
Rated Energy	62.4 kWh
Max. Discharging Current	67.5 A
Cycle Life	6000 cycles @ 90% DOD
Maximum PV Power	19.2 kW + 19.2 kW
Maximum PV Voltage	850 V
PV Starting Voltage	250 V
MPPT Voltage Range	200 – 830 V
Maximum PV Current	32 A + 32 A
Rated Power (AC Side)	30 kVA
Rated Current (AC Side)	43.5 A
Rated Grid Voltage	400 V / 230 V
Grid Voltage Range	-20% ~ +15%
Voltage Harmonics	< 5% (load > 30%)
Communication	EMS: RS485, Battery: CAN / RS485
Standby / No-load Loss	< 10 W / < 100 W
Dimension (W × L × H)	586 × 713 × 1719 mm
Weight (kg)	617

Parameter	Details
Number of Battery Packs	9
Rated Voltage	518.4 V
Voltage Range	461.7 – 575.1 V
Rated Energy	69.9 kWh
Max. Discharging Current	67.5 A
Cycle Life	6000 cycles @ 90% DOD
Maximum PV Power	19.2 kW + 19.2 kW
Maximum PV Voltage	850 V
PV Starting Voltage	250 V
MPPT Voltage Range	200 – 830 V
Maximum PV Current	32 A + 32 A
Rated Power (AC Side)	30 kVA
Rated Current (AC Side)	43.5 A
Rated Grid Voltage	400 V / 230 V
Grid Voltage Range	-20% ~ +15%
Voltage Harmonics	< 5% (load > 30%)
Communication	EMS: RS485, Battery: CAN / RS485
Standby / No-load Loss	< 10 W / < 100 W
Dimension (W × L × H)	586 × 713 × 1874 mm
Weight (kg)	685

Parameter	Details
Number of Battery Packs	10
Rated Voltage	576 V
Voltage Range	513 – 639 V
Rated Energy	77.7 kWh
Max. Discharging Current	67.5 A
Cycle Life	6000 cycles @ 90% DOD
Maximum PV Power	19.2 kW + 19.2 kW
Maximum PV Voltage	850 V
PV Starting Voltage	250 V
MPPT Voltage Range	200 – 830 V
Maximum PV Current	32 A + 32 A
Rated Power (AC Side)	30 kVA
Rated Current (AC Side)	43.5 A
Rated Grid Voltage	400 V / 230 V
Grid Voltage Range	-20% ~ +15%
Voltage Harmonics	< 5% (load > 30%)
Communication	EMS: RS485, Battery: CAN / RS485
Standby / No-load Loss	< 10 W / < 100 W
Dimension (W × L × H)	586 × 713 × 2029 mm
Weight (kg)	753

Parameter	Details
Number of Battery Packs	11
Rated Voltage	633.6 V
Voltage Range	564.3 – 702.9 V
Rated Energy	85.5 kWh
Max. Discharging Current	67.5 A
Cycle Life	6000 cycles @ 90% DOD
Maximum PV Power	19.2 kW + 19.2 kW
Maximum PV Voltage	850 V
PV Starting Voltage	250 V
MPPT Voltage Range	200 – 830 V
Maximum PV Current	32 A + 32 A
Rated Power (AC Side)	30 kVA
Rated Current (AC Side)	43.5 A
Rated Grid Voltage	400 V / 230 V
Grid Voltage Range	-20% ~ +15%
Voltage Harmonics	< 5% (load > 30%)
Communication	EMS: RS485, Battery: CAN / RS485
Standby / No-load Loss	< 10 W / < 100 W
Dimension (W × L × H)	586 × 713 × 2184 mm
Weight (kg)	821

Parameter	Details
Number of Battery Packs	12
Rated Voltage	691.2 V
Voltage Range	615.6 – 766.8 V
Rated Energy	93.3 kWh
Max. Discharging Current	67.5 A
Cycle Life	6000 cycles @ 90% DOD
Maximum PV Power	19.2 kW + 19.2 kW
Maximum PV Voltage	850 V
PV Starting Voltage	250 V
MPPT Voltage Range	200 – 830 V
Maximum PV Current	32 A + 32 A
Rated Power (AC Side)	30 kVA
Rated Current (AC Side)	43.5 A
Rated Grid Voltage	400 V / 230 V
Grid Voltage Range	-20% ~ +15%
Voltage Harmonics	< 5% (load > 30%)
Communication	EMS: RS485, Battery: CAN / RS485
Standby / No-load Loss	< 10 W / < 100 W
Dimension (W × L × H)	586 × 713 × 2339 mm
Weight (kg)	889
