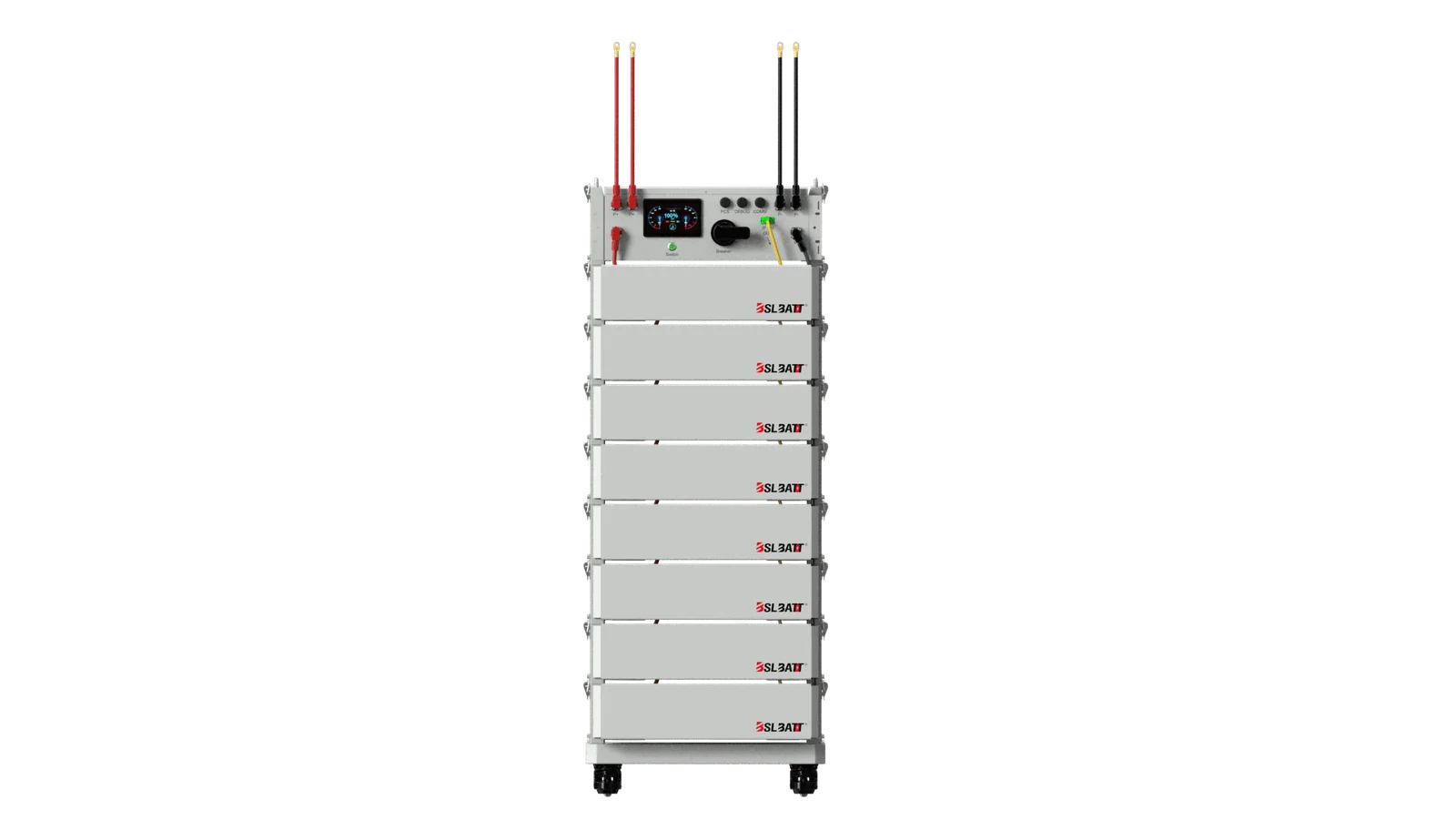

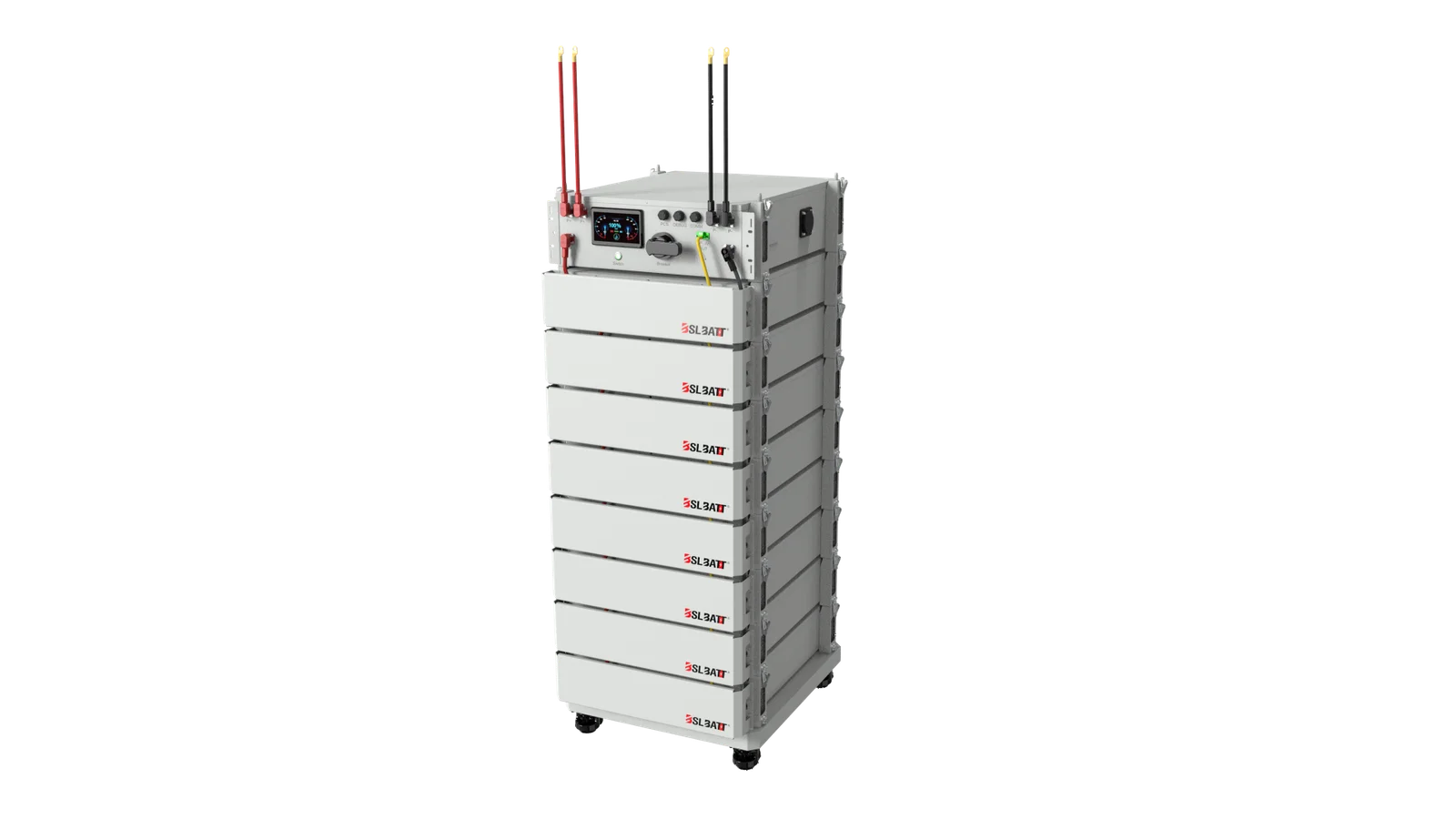

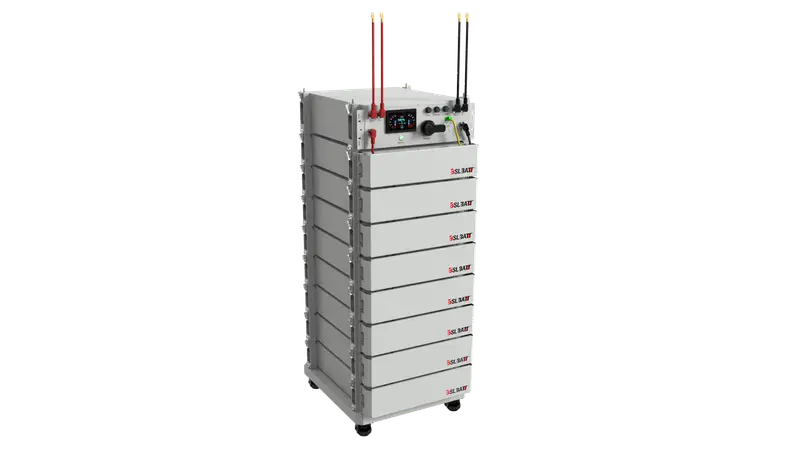

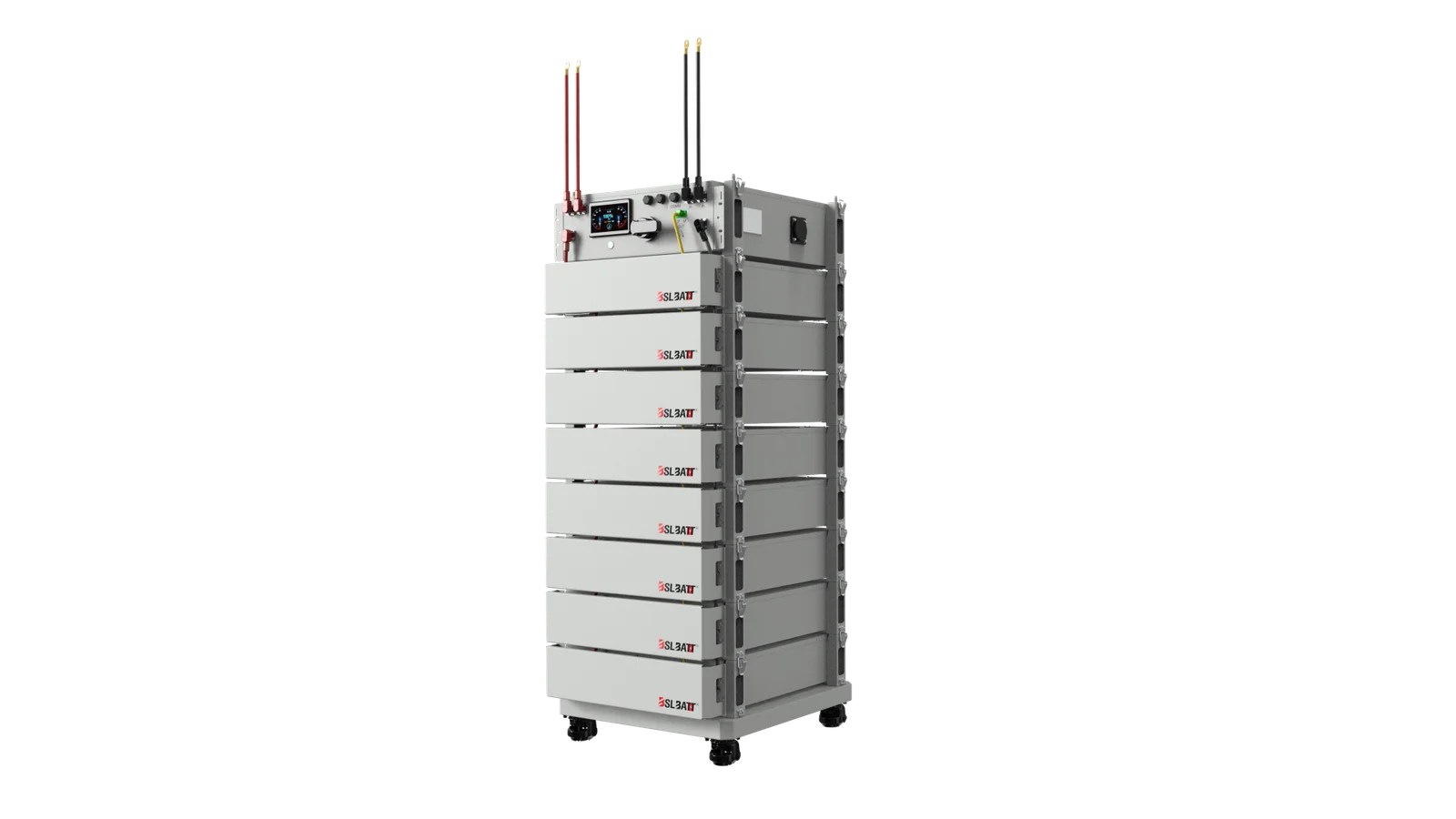

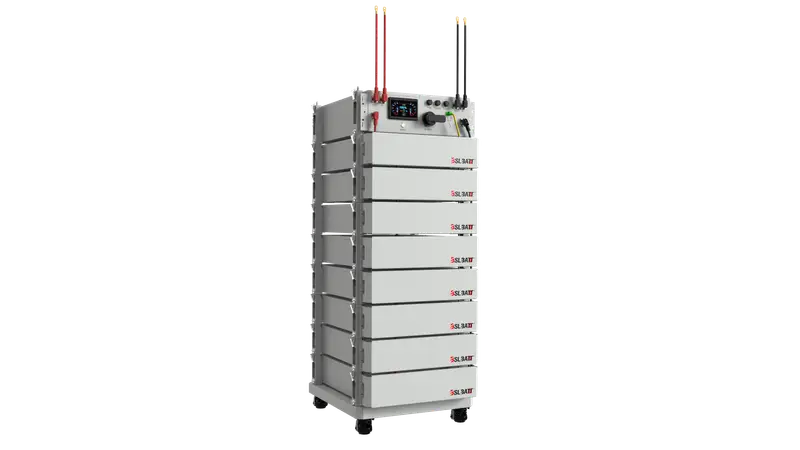

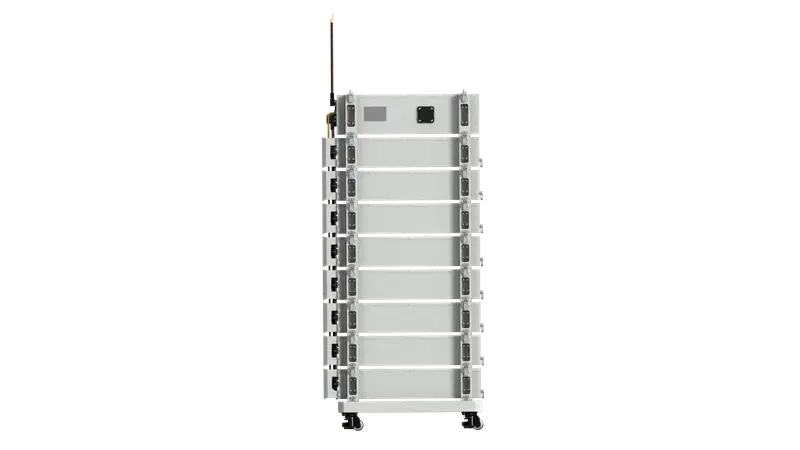

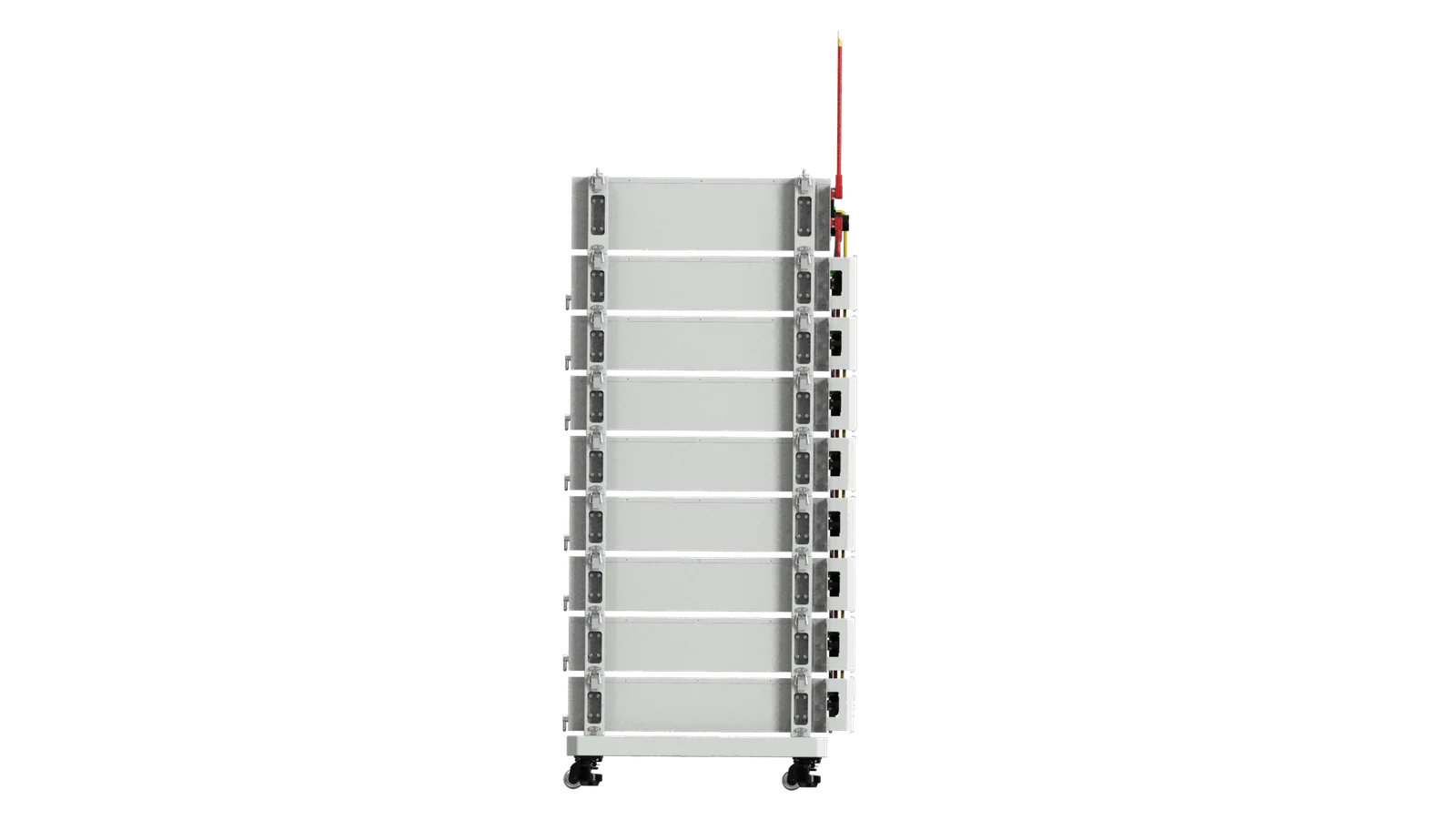

ESS-GRID HV Pack – High-Voltage Energy Storage (288–806 V, 38–116 kWh)
The ESS-GRID HV Pack offers modular high-voltage energy storage with capacities from 38 kWh to 116 kWh and voltages ranging from 288 V to 806 V. Ideal for commercial, residential, and industrial applications, it integrates smoothly with grid power and renewable energy sources, helping users optimize energy efficiency, reduce costs, and ensure reliable, scalable power management for any scenario.
Sustainable Living, Powered by BSLBATT
Sustainable High Performance Storage with ESS-GRID HV PACK
The ESS-GRID HV Pack provides scalable high-voltage energy storage with modular 7.776 kWh battery packs, supporting system voltages from 288 V to over 800 V. Its intelligent BMS and multi-layer safety protection ensure long cycle life, wide temperature range, and flexible capacity expansion, making it ideal for commercial and industrial energy storage, grid integration, and backup power.
High Energy Density
Each ESS-GRID HV Pack module provides 7.776 kWh, and the system supports 5–14 modules plus 1 control box, enabling flexible scaling from 38 kWh to 544 kWh for residential, commercial, and industrial applications.
Wide Voltage Compatibility
The ESS-GRID HV Pack supports a rated voltage range of 288 V–806.4 V, reducing conversion losses and enabling efficient integration with inverters and grid systems.
Long Cycle Life
The ESS-GRID HV Pack is rated for 6000 cycles at 90% DOD, ensuring high capacity, reliable performance, and long-term cost savings for maximum ROI.
Extreme Temperature Adaptability
The ESS-GRID HV Pack operates safely from -20°C to 55°C (discharge) and 0°C to 55°C (charge), delivering stable performance in extreme temperatures or enclosed spaces without extra climate control.
Intelligent Safety & Management
The ESS-GRID HV Pack features multi-layer protection and a smart BMS that continuously monitors each cell, preventing overcharge, overvoltage, short-circuit, and thermal risks for safe and reliable operation.
Flexible & Easy Installation
The ESS-GRID HV Pack uses compact, lightweight modules for stacking and space-efficient deployment, with standardized interfaces and modular replacement to simplify maintenance and upgrades.
Specifications
Discover ESS-GRID HV Pack Performance
The ESS-GRID HV Pack delivers modular high-voltage LiFePO₄ energy storage for residential, commercial, and industrial applications, with scalable capacities from 38 kWh to 544 kWh. Designed for high reliability, long cycle life, and safe, stable operation, it supports solar integration, grid backup, peak shaving, and microgrid applications. This flexible system ensures efficient, uninterrupted energy while optimizing operational costs and reducing dependence on the grid.
| Parameter | Details |
|---|---|
| Module Energy (kWh) | 7.776 kWh |
| Module Nominal Voltage (V) | 57.6 V |
| Module Capacity (Ah) | 135 Ah |
| Controller Working Voltage | 80–1000 VDC |
| Rated Voltage (V) | 288 V |
| Battery Qty in Series (Optional) | 5 (Min) |
| System Configuration | 90S1P |
| Rated Power (kWh) | 38.88 kWh |
| Recommended Current (A) | 68 A |
| Maximum Charging Current (A) | 120 A |
| Maximum Discharging Current (A) | 120 A |
| Dimension (L × W × H) (mm) | 620 × 726 × 1110 mm |
| Host Software Protocol | CAN BUS (Baud rate @ 250 Kb/s) |
| Cycle Life (25°C) | > 6000 cycles @ 90% DOD |
| Protection Level | IP20 |
| Storage Temperature | -10°C ~ 40°C |
| Warranty | 10 years |
| Battery Life | ≥15 years |
| Weight | 378 kg |
| Certification | UN38.3 / IEC62619 / IEC62040 / IEC62477 / CE |
| Parameter | Details |
|---|---|
| Module Energy (kWh) | 7.776 kWh |
| Module Nominal Voltage (V) | 57.6 V |
| Module Capacity (Ah) | 135 Ah |
| Controller Working Voltage | 80–1000 VDC |
| Rated Voltage (V) | 460.8 V |
| Battery Qty in Series (Optional) | 8 |
| System Configuration | 144S1P |
| Rated Power (kWh) | 62.21 kWh |
| Recommended Current (A) | 68 A |
| Maximum Charging Current (A) | 120 A |
| Maximum Discharging Current (A) | 120 A |
| Dimension (L × W × H) (mm) | 620 × 726 × 1560 mm |
| Host Software Protocol | CAN BUS (Baud rate @ 250 Kb/s) |
| Cycle Life (25°C) | > 6000 cycles @ 90% DOD |
| Protection Level | IP20 |
| Storage Temperature | -10°C ~ 40°C |
| Warranty | 10 years |
| Battery Life | ≥15 years |
| Weight | 582 kg |
| Certification | UN38.3 / IEC62619 / IEC62040 / IEC62477 / CE |
| Parameter | Details |
|---|---|
| Module Energy (kWh) | 7.776 kWh |
| Module Nominal Voltage (V) | 57.6 V |
| Module Capacity (Ah) | 135 Ah |
| Controller Working Voltage | 80–1000 VDC |
| Rated Voltage (V) | 576 V |
| Battery Qty in Series (Optional) | 10 |
| System Configuration | 180S1P |
| Rated Power (kWh) | 77.76 kWh |
| Recommended Current (A) | 68 A |
| Maximum Charging Current (A) | 120 A |
| Maximum Discharging Current (A) | 120 A |
| Dimension (L × W × H) (mm) | 620 × 726 × 1860 mm |
| Host Software Protocol | CAN BUS (Baud rate @ 250 Kb/s) |
| Cycle Life (25°C) | > 6000 cycles @ 90% DOD |
| Protection Level | IP20 |
| Storage Temperature | -10°C ~ 40°C |
| Warranty | 10 years |
| Battery Life | ≥15 years |
| Weight | 718 kg |
| Certification | UN38.3 / IEC62619 / IEC62040 / IEC62477 / CE |
| Parameter | Details |
|---|---|
| Module Energy (kWh) | 7.776 kWh |
| Module Nominal Voltage (V) | 57.6 V |
| Module Capacity (Ah) | 135 Ah |
| Controller Working Voltage | 80–1000 VDC |
| Rated Voltage (V) | 691.2 V |
| Battery Qty in Series (Optional) | 12 |
| System Configuration | 216S1P |
| Rated Power (kWh) | 93.31 kWh |
| Recommended Current (A) | 68 A |
| Maximum Charging Current (A) | 120 A |
| Maximum Discharging Current (A) | 120 A |
| Dimension (L × W × H) (mm) | 620 × 726 × 2146 mm |
| Host Software Protocol | CAN BUS (Baud rate @ 250 Kb/s) |
| Cycle Life (25°C) | > 6000 cycles @ 90% DOD |
| Protection Level | IP20 |
| Storage Temperature | -10°C ~ 40°C |
| Warranty | 10 years |
| Battery Life | ≥15 years |
| Weight | 854 kg |
| Certification | UN38.3 / IEC62619 / IEC62040 / IEC62477 / CE |
| Parameter | Details |
|---|---|
| Module Energy (kWh) | 7.776 kWh |
| Module Nominal Voltage (V) | 57.6 V |
| Module Capacity (Ah) | 135 Ah |
| Controller Working Voltage | 80–1000 VDC |
| Rated Voltage (V) | 806.4 V |
| Battery Qty in Series (Optional) | 14 (MAX) |
| System Configuration | 252S1P |
| Rated Power (kWh) | 108.86 kWh |
| Recommended Current (A) | 68 A |
| Maximum Charging Current (A) | 120 A |
| Maximum Discharging Current (A) | 120 A |
| Dimension (L × W × H) (mm) | 1180 × 713 × 1418 mm |
| Host Software Protocol | CAN BUS (Baud rate @ 250 Kb/s) |
| Cycle Life (25°C) | > 6000 cycles @ 90% DOD |
| Protection Level | IP20 |
| Storage Temperature | -10°C ~ 40°C |
| Warranty | 10 years |
| Battery Life | ≥15 years |
| Weight | 1,008 kg |
| Certification | UN38.3 / IEC62619 / IEC62040 / IEC62477 / CE |
